Description

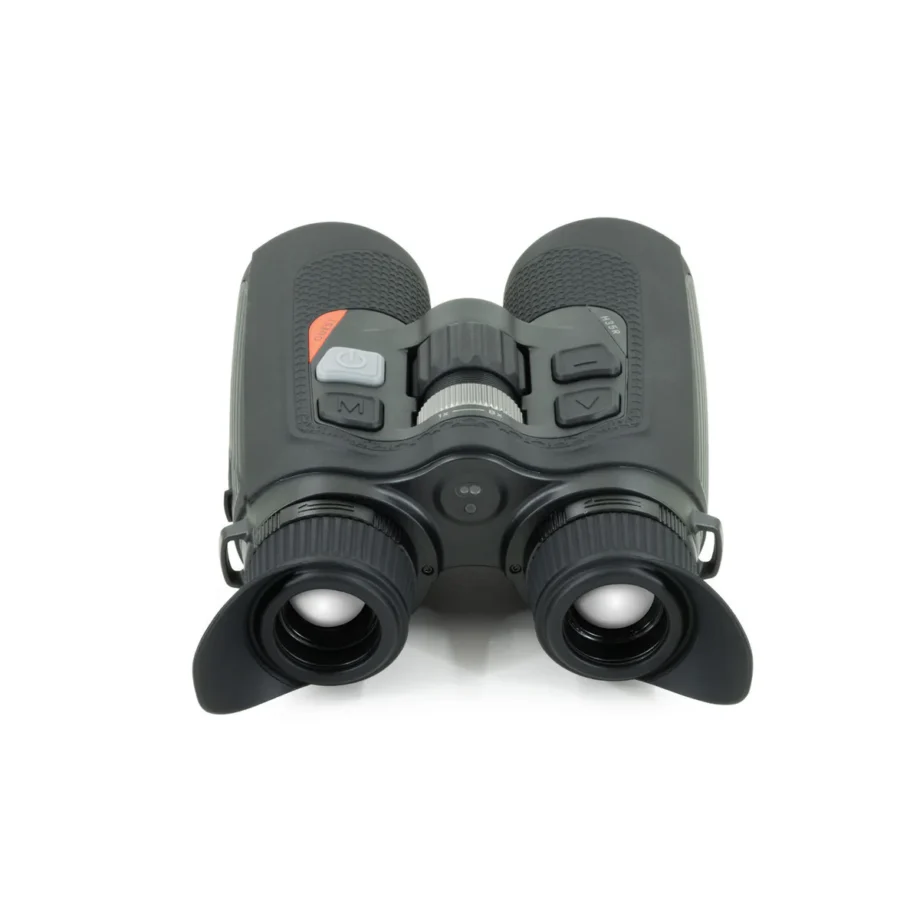

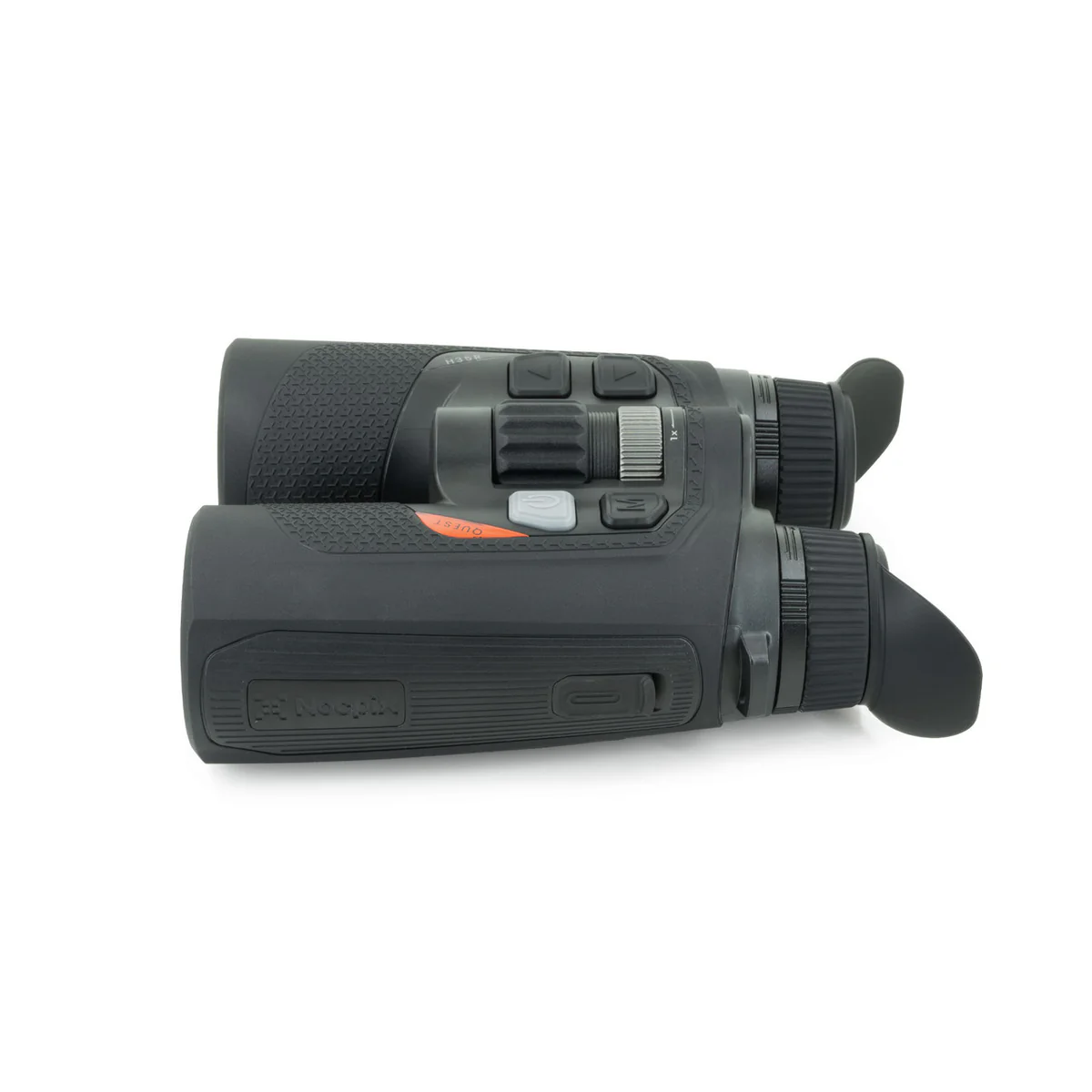

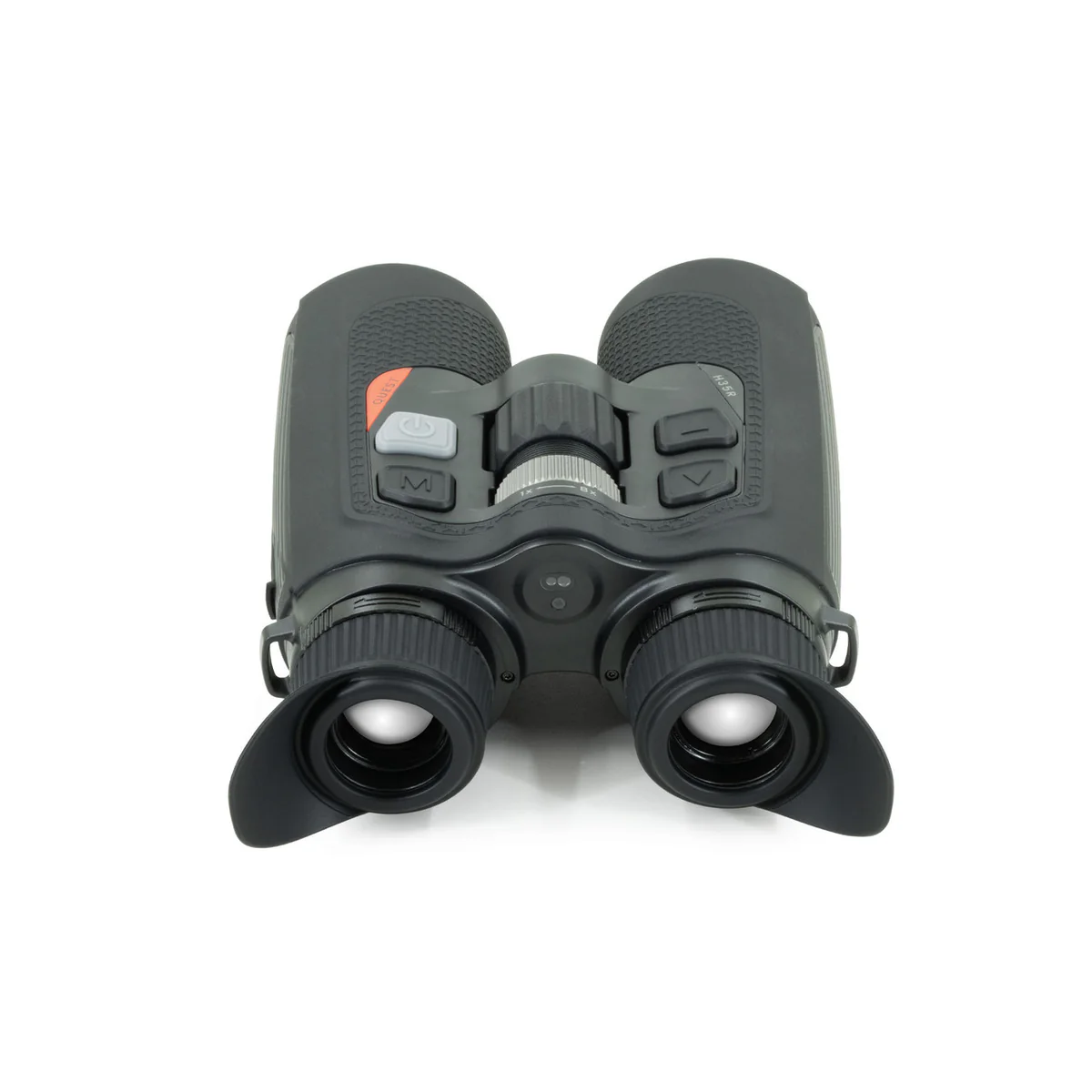

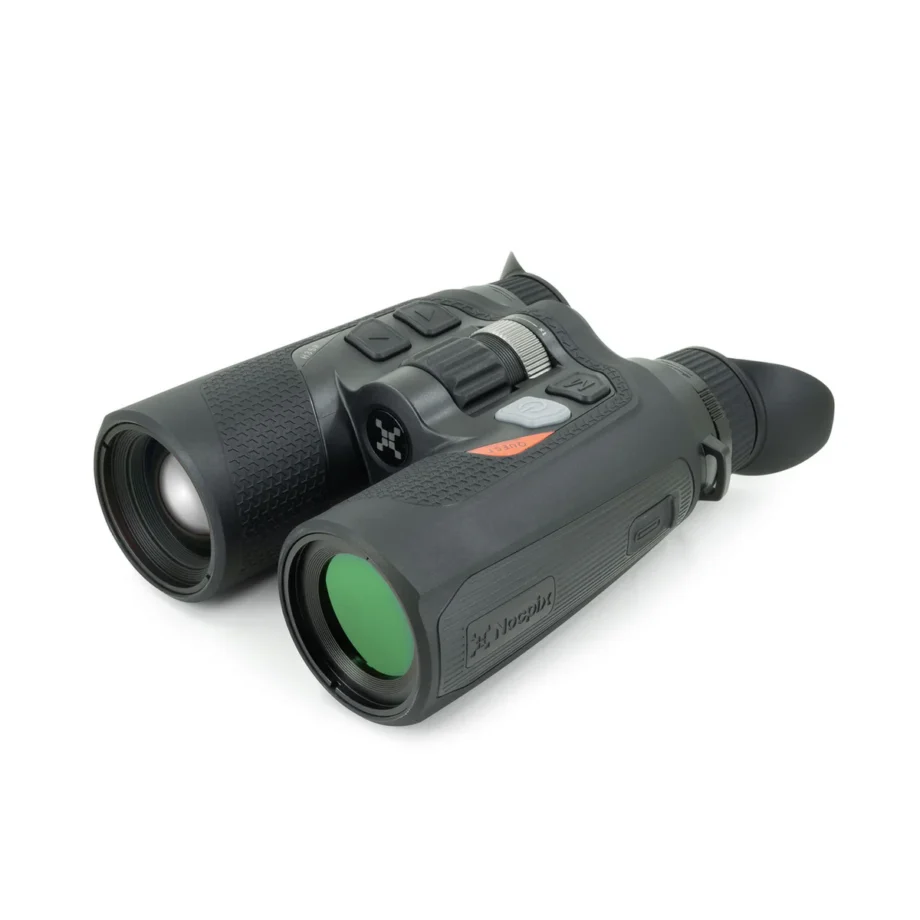

All new for 2025, QUEST binoculars deliver a comfortable and intuitive viewing experience. Unlike thermal monoculars, the QUEST binoculars allow users to use both hands and both eyes while scanning – providing a smooth and comfortable feel, just like traditional daylight binoculars. A 12 μm ≤15mK 640×512 thermal sensor captures every detail, while the Reality+ image processing algorithm delivers a vivid picture to the 1920×1200 displays (full resolution per each eyepiece). Each display has a dedicated diopter and position adjustment.
QUEST binoculars also include an easy-to-use 1,000 yard laser rangefinder that can run in either single-firing or continuous modes to show target distance on the display. The combination of an internal USB-C rechargeable battery and an auxiliary IRB-2 (18650 style) rechargeable battery allows users to hot-swap the power source and keep running all night long. The QUEST is available with a 50 mm objective lens (model H50R) or a 35 mm germanium objective lens (H35R). Each comes with everything you would expect from high-end binoculars, including a comfortable and fully adjustable binocular harness.
-
Optics
Objective Focal Length
35mm
Detection Range
1970 Yards
Digital Magnification
8X
Vertical Angular Field of View
10°
Horizontal Angular Field of View
12.5°
Objective Lens Material
Germanium
Optical Magnification
3X
Objective F#
0.9
Objective Diameter
35mm
Display Type
AMOLED
Eye Relief
25mm
Diopter Range
-5 to +5
Focusing Mechanism
Manual Focus
Display Resolution
1920×1200
-
Features & Performance
Warranty
5 Years
Startup Time
<10 Seconds, Instant from Standby
Rangefinder
Integrated 1000 yd LRF
Color Palettes
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-Picture
Yes
Storage Capacity
64GB
Connector Output
Power/Data
User-Updatable Firmware
Yes
Mobile App
Yes
Run Time
5+
Power Source
USB-C External, 18650 Battery, Built-In Battery Pack
Stand-by Mode
Yes
Connector Type
USB-C
External Power Source
USB-C
Country of Manufacture
China
Wifi
Yes
Onboard Recording
Yes
Image Capture
Yes
Video Output
Yes
-
Environmental Specifications
Operating Temperature Range
-4°F~122°F
Ingress Protection
IP67
-
Physical
Housing Material
Polymer
Weight
24.69
Height
2.60
Width
5.43
Length
6.91
-
Sensor Specifications
Sensor Type
Nocpix 640
Device Technology
Thermal Imaging
Sensor Resolution
640×512
Sensor Pixel Size
12μm
Thermal Sensitivity
<15mk
Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic
Sensor Frame Rate
60hz
